Montagens & acessórios > Montagens > Equatorial com Go To > Skywatcher > CQ350 > Skywatcher Montagem CQ350 Pro Synscan GoTo Tripod
Nr. do produto: 77373

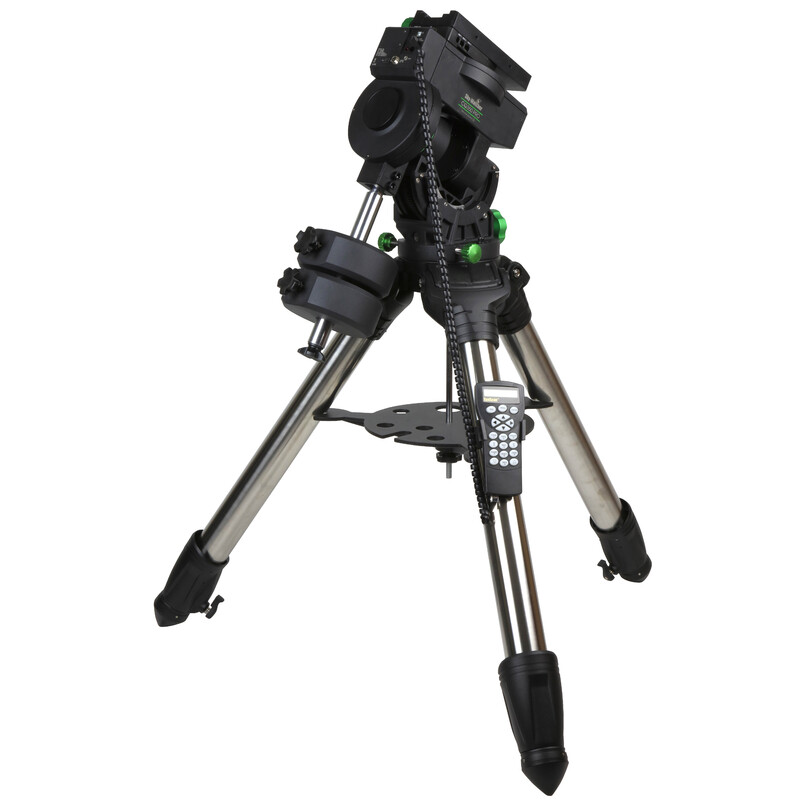

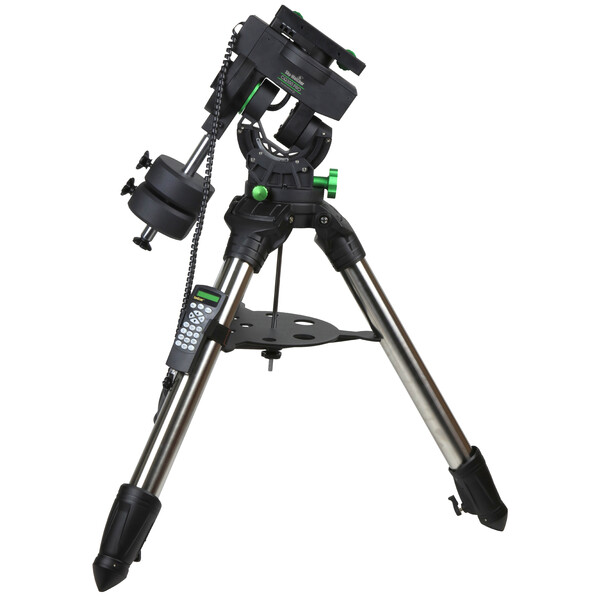

Montagem CQ350 Pro Synscan GoTo Tripod

$ 4.150,00 incl. VAT, mais custo de remessa
muito caro?
curto prazo
pronto para entrega em 1-2 semanas + Tempo de Transportes
Este produto está disponível nas seguintes variantes:
Tripé Preço
Tripé $ 4.150,00
sem tripé $ 3.380,00

Descrição do produto

Shortly:

  • Load capacity up to 35 kilograms
  • Database with 42,900 objects
  • Toothed belt drive for smooth running
  • SynScan V.5 hand control box
  • Dual prism rail

With the CQ350, Sky-Watcher presents a mount that sits between the EQ6-R and the EQ8-R . It can be used for mobile astrophotography, garden observatories or club observatories. It is therefore available both with and without a tripod.

The equatorial CQ350 Pro has the well-established SynScan™ computer control with 42,900 objects in the integrated database. These can be easily accessed using the Messier, NGC and other catalog numbers. With an optional WiFi dongle, it is possible to control the mount via an app with iOS or Android devices.

The mount was developed for the demanding astrophotographer , its maximum load is 35kg. The combined dovetail bar clamp for 45 and 75mm dovetail bars allows a large selection of telescope tubes and other accessories to be accommodated.

The quietly working mount is moved in both axes via belt drives with stepper motors (encoder resolution: 55,193,600 counts/rev., approx. 0.023 arc-second). The smooth running and the high panning speed make this mount very interesting for observatories with public tours.

The scope of delivery includes two counterweights, each weighing 10 kg. An external polar finder can optionally be connected for quick setup.

The CQ350 mount is compatible with the EQ8 column stand.

Especificações

Capacidade


Capacidade de carga máxima (kg)
35
Mounting saddle
Losmandy & Vixen
Ajuste da altura do polo (°)
0-70
Ajuste fino do azimute (°)
+/-15
Roda dentada de engrenagem sem fim (DEC)
288
Roda dentada de engrenagem sem fim (RA)
308
Diâmetro do sem fim RA (mm)
155
Encoder
sim
Interfaces
4xUSB, 1xShutter Release, 1xPower Input, 3xPower Output, 1xHandcontroller Port & 1xAutoguider Port
Condução de cabos
interno
Suprimento de energia
16
Consumo de energia em ponto morto (mA)
2000
Tipo de motor
Motores de passo
Correia dentada
sim
Peso da cabeça equatorial (kg)
15
Velocidades de rotação
4

Especialidades


Sistema GoTo
sim

Equipamento


Buscadora do polo
não
Movido a motor
sim
Tripé
Tripé
Caixas de transporte
não

Tripé


Material do tripé
Alumínio
Altura máxima do tripé (cm)
108
Altura mínima do tripé (cm)
77,5
Peso do tripé (kg)
15,7
Pé de tripé
Plástico
Diâmetro da perna do tripé (mm)
70

Geral


Tipo
Montagem
Tipo de construção
Equatorial
Série
CQ350
Peso total (kg)
50,9

Controle GoTo


Banco de dados
42.900
com remo de mão
sim
Controlador de mão
SynScan
GPS
opcional
WIFI
opcional
Correção PEC
sim
Velocidades de rastreio
sideral, solar e lunar
Linguagem do GoTo
multilíngue
Software
SynScan
Autoguiding
sim

Acessórios recomendados

Acessórios para telescópio > Cabos e fontes de alimentação (6)

Celestron Powertank Lithium LiFePO4 84Wh

$ 236,00*
Montagens & acessórios (2)

Skywatcher Módulo WLAN Wi-Fi SynScan

$ 118,00*

*Todos os preços incluem imposto e custos de remessa.

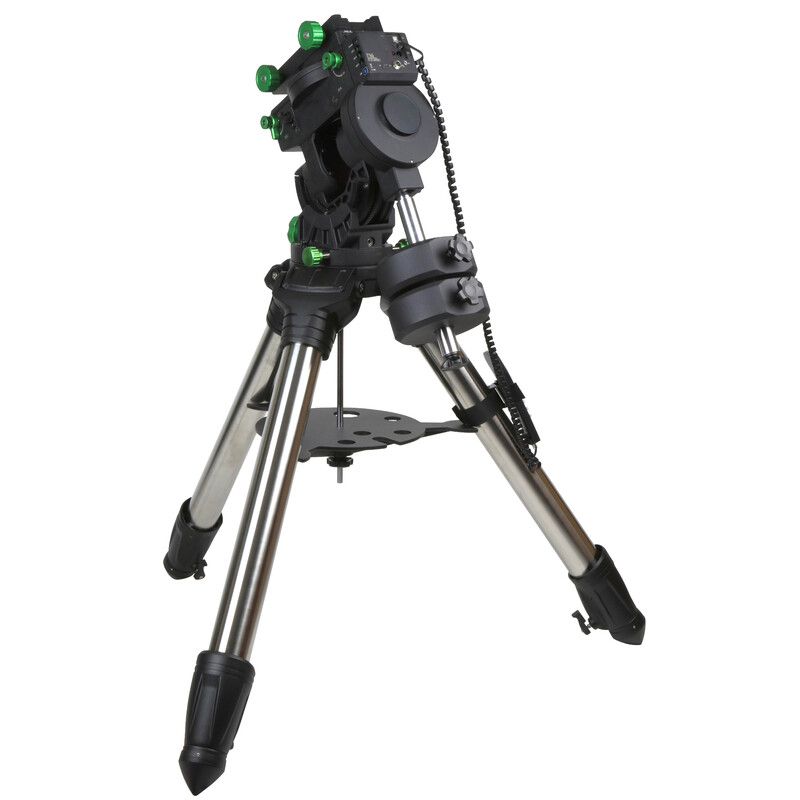

Skywatcher Montagem CQ350 Pro Synscan GoTo Tripod

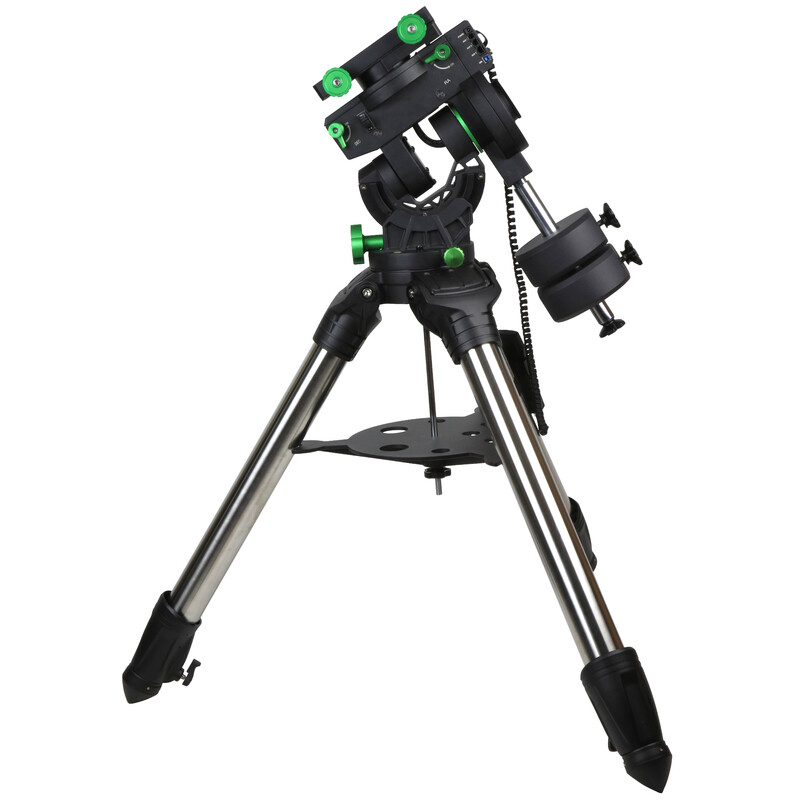

Skywatcher Montagem CQ350 Pro Synscan GoTo Tripod

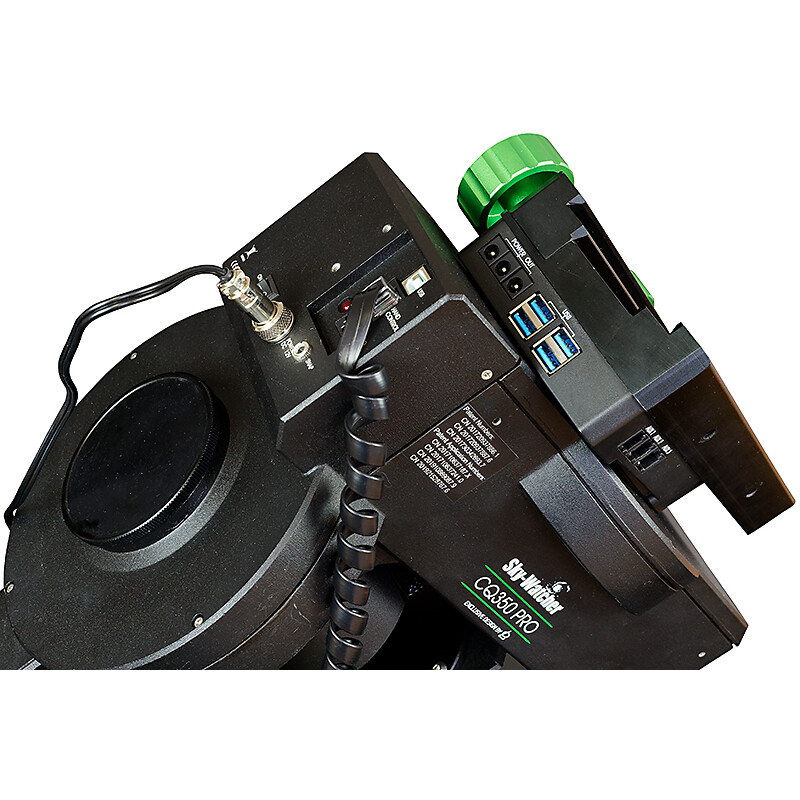

Skywatcher Montagem CQ350 Pro Synscan GoTo Tripod

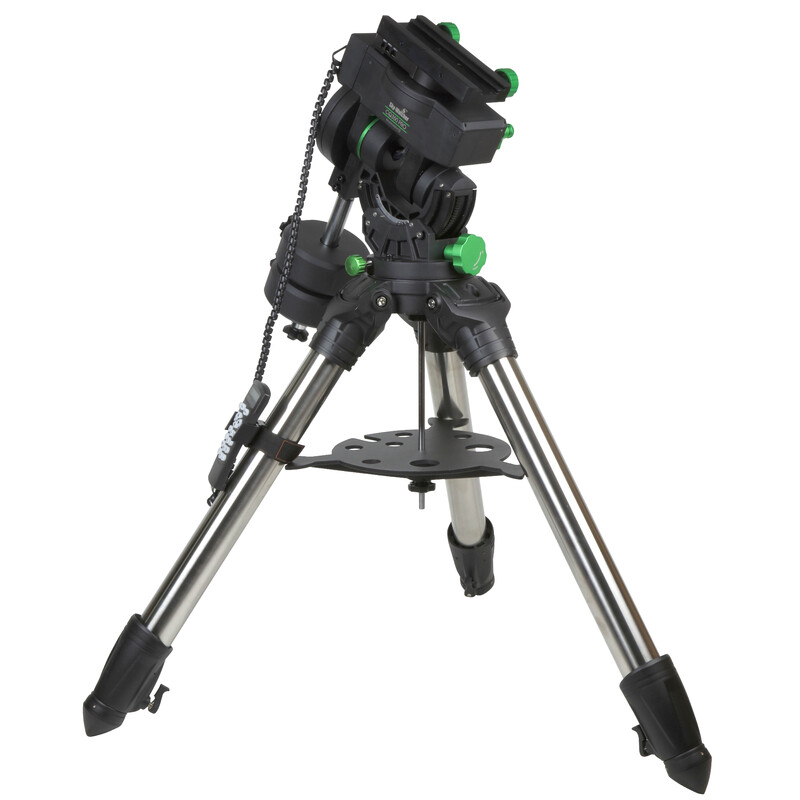

Skywatcher Montagem CQ350 Pro Synscan GoTo Tripod

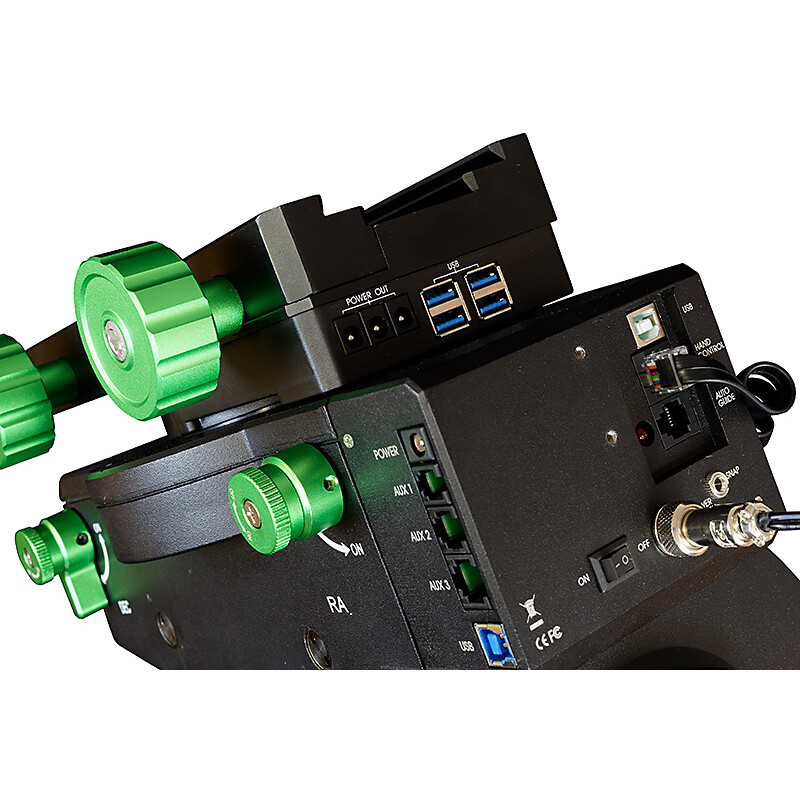

Skywatcher Montagem CQ350 Pro Synscan GoTo Tripod

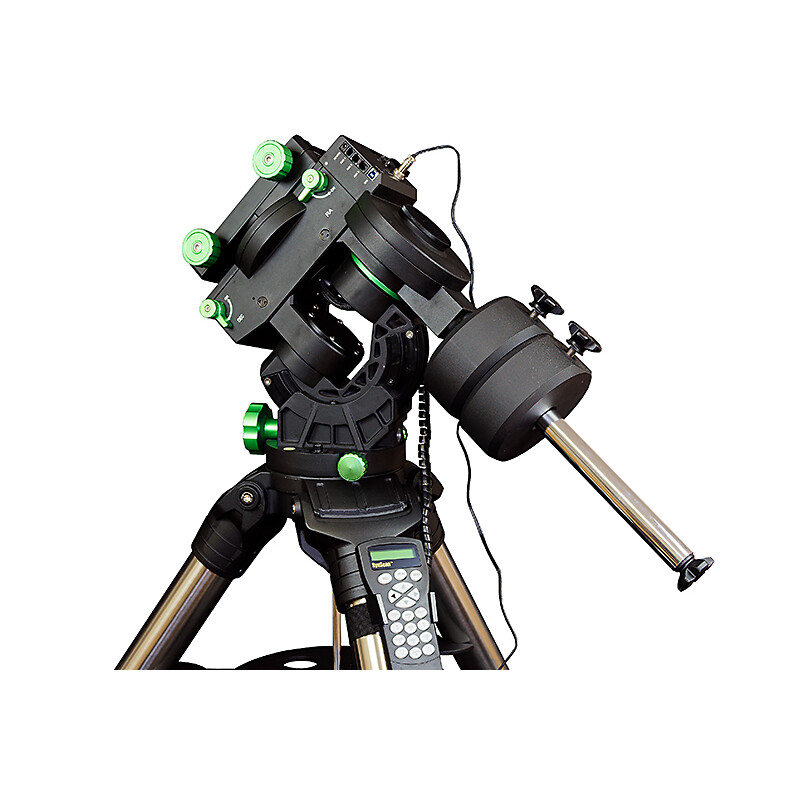

Skywatcher Montagem CQ350 Pro Synscan GoTo Tripod

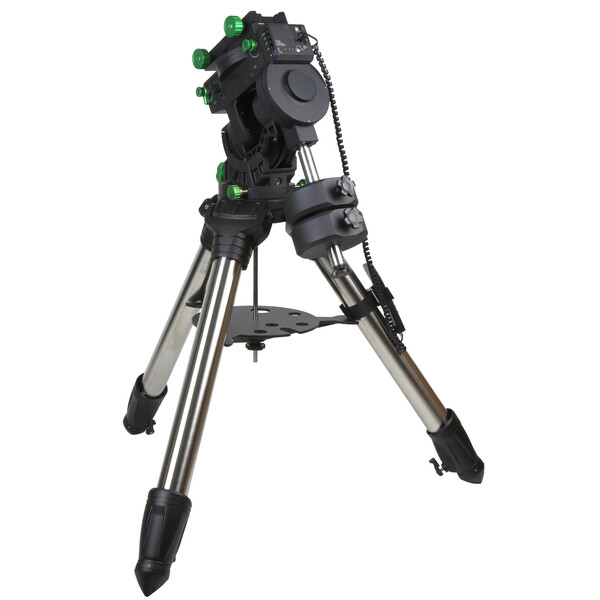

Skywatcher Montagem CQ350 Pro Synscan GoTo Tripod

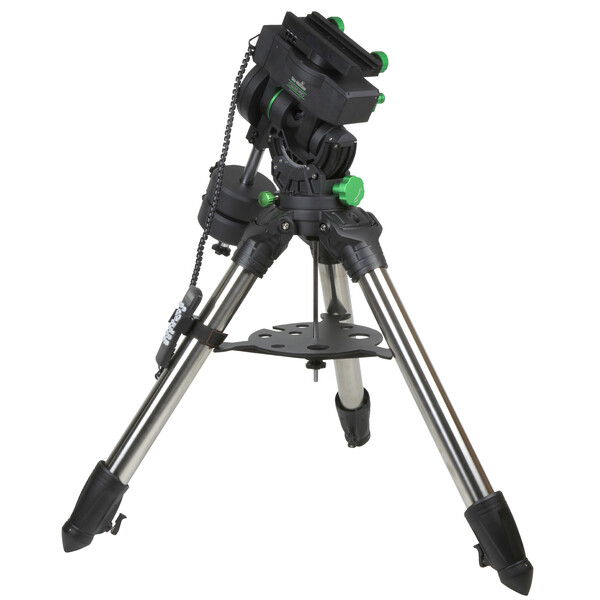

Skywatcher Montagem CQ350 Pro Synscan GoTo Tripod
