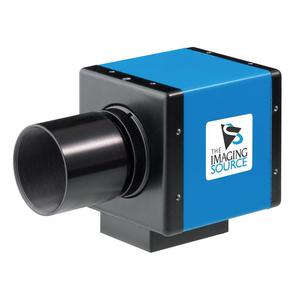

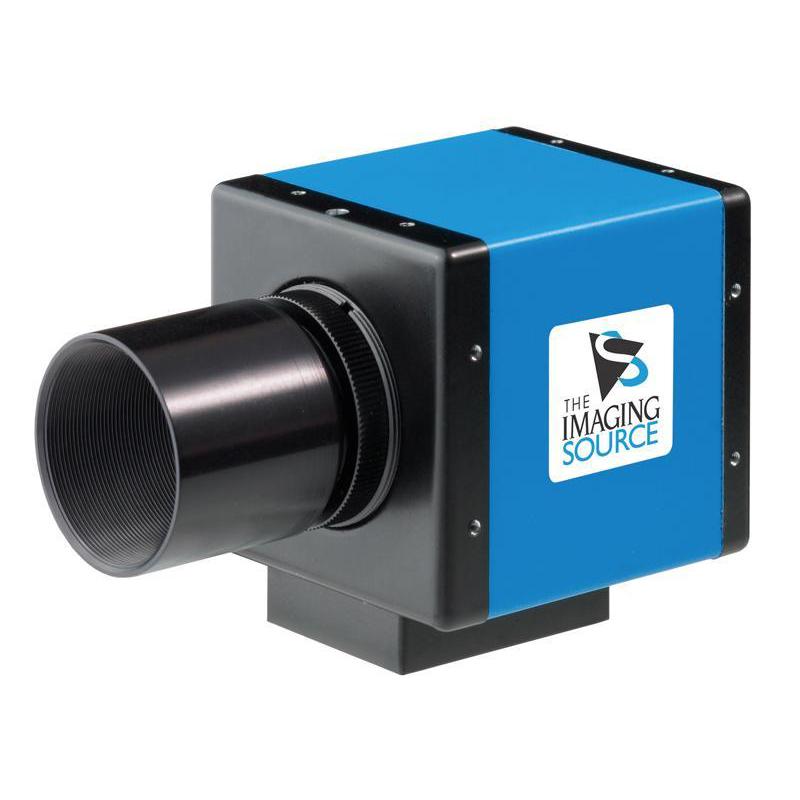

Câmera colorida DBK 31AG03.A, GigE

Low Cost, High Resolution GigE Color Astronomy Camera without IR Cut Filter

High resolution, fast refresh rate
The astronomy camera DBK 31AG03.AS combines a high resolution, fast refresh rate and a low price. Therefore, it is ideally suited to amateur astronomers wishing to deploy a mega pixel camera. Using the shipped software - IC Capture - you can save the captured images to lossless and uncompressed AVI files.

Fast display of color images
For the visualization of the raw data from the color CCD (RAW format), the data stream must be post processed (color interpolation). Interpolated color images require much more bandwidth to transfer than original RAW images. Color interpolation in the CCD camera DBK 31AG03.AS can be switched off and thus 30 color frames per second can be transfered. In this case, the images are color interpolated on the host PC with the shipped software IC Capture.AS. Alternatively, should color interpolation not be desirable at all, AVI files can be written in RAW format.

Sony color CCD
The astro CCD camera DBK 31AG03.AS is fitted with the color CCD ICX204AK, manufactured by Sony. The resolution of the CCD is 1024 x 768 pixel at a format of 1/3". Even at long exposure times, its noise is minimal. Due to the high quality of the ICX204AK, it is often used in medical image processing applications.

IR Cut Filter
Color cameras that do not possess a color filter offer users a large degree of flexibility: Filters may be added as required by a specific application. Therefore, we ship the astronomy camera DBK 31AG03.AS without an IR cut filter.

Fast data transfer via GigE
The astro CCD camera DBK 31AG03.AS outputs high resolution images in a fast sequence.

Shipped software for Windows
This camera ships with the camera driver and the control software IC Capture.AS.

• Color USB camera without IR cut filter
• 1/3" CCD, progressive scan
• Resolution 1024 x 768
• Max. 30 fps
• Max exposure time 60 min
• C/CS Mount
• Software included
