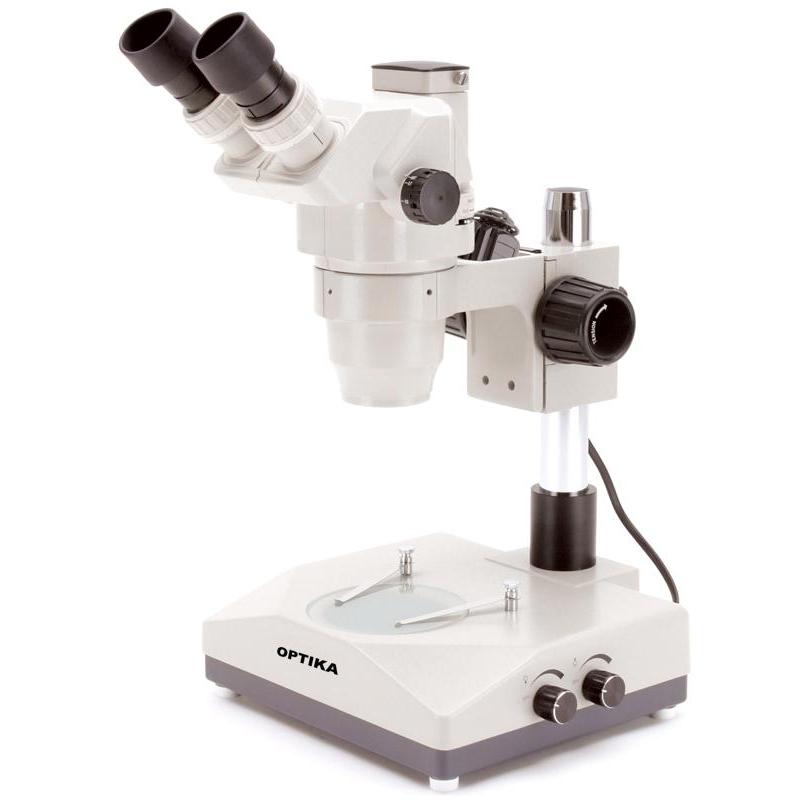

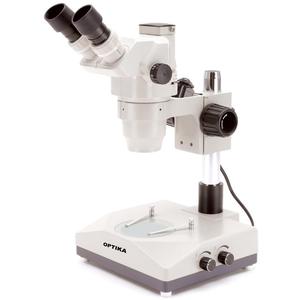

Microscópio com zoom binocular SZR-13, suporte pendente articulado

SDR Series

The SDR stereo microscopes are ideal for laboratory and research. Thanks to its equipment and the optical and mechanical qualities, they are outstanding in the field of research equipment. They are available in fourteen different designs to meet the different needs of the user. The main feature of this series consists of the binocular and trinocular heads with zoom optics. Many tripods and feet can be combined with the heads. A wide range of accessories further expands the potential use of these microscopes.

Lenses

Achromatic parfocal zoom lenses, from 0.67 to 4.5x with variable magnification (45x max with default configuration can reach 180x with accessories).

Slides

The devices have a white / black disk and terminals (with the exception of devices with overhanging stands). With transmitted light microscopes have a frosted glass.

Tripod

There are five different versions: simply stand by without light, with simple tripod foot for reflected and transmitted light, with integrated lighting system, with overhanging stand - simple or swivel - large objects to look at.

Technical data of the SDR series microscopes:

• Bino-/Trinokulare heads, 360 ° rotatable, 45 ° inclined
• 12V/15W halogen lamps with adjustable brightness
• Interocular distance adjustable between 52 and 75mm
• Diopter adjustment on both eyepieces
• EWF10x/22mm eyepieces, High Point
• Working distance of 110 mm
• Focusing controlled by rack drive, double buttons
