Microscópios > Microscópios > Microscópios inversos > Optika > IM-3 > Optika Microscópio invertido Mikroskop IM-3MET-SW, trino, invers, IOS LWD U-PLAN MET, 50x-500x, EU
Nr. do produto: 56137

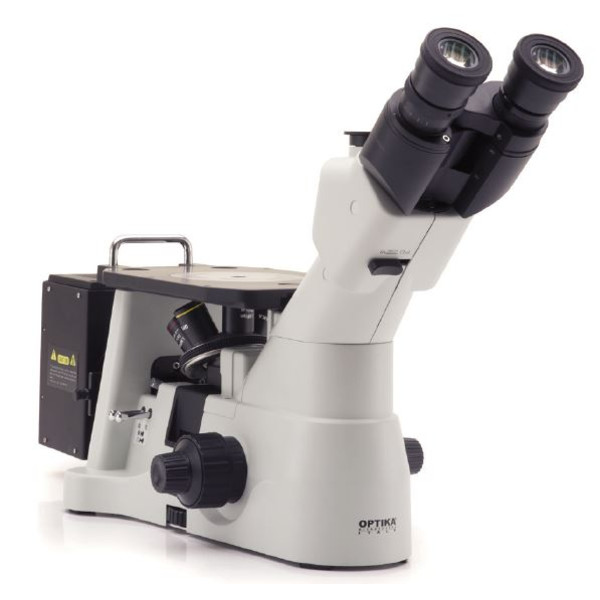

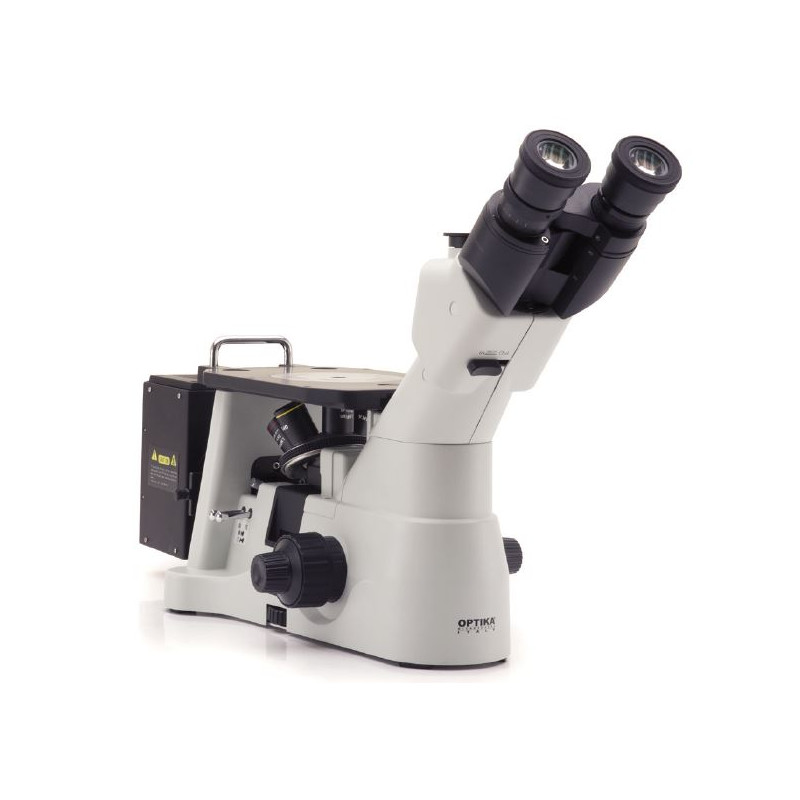

Microscópio invertido Mikroskop IM-3MET-SW, trino, invers, IOS LWD U-PLAN MET, 50x-500x, EU

RRP: $ 3.210,00 Nosso preço:
$ 2.890,00 incl. VAT, mais custo de remessa
muito caro?
longo prazo
pronto para envio em 6-10 semanas + Tempo de Transportes

Descrição do produto

Mais sobre a série IM-3...

Infelizmente, a descrição deste produto ainda não está em Portuguê portanto, você encontrará uma descrição em Inglês do produto aqui.

IM-3 Series- Inverted Microscopes For Routine Applications

Your Preferred Inverted Microscope For Routine Applications

Intuitive, easy use for all levels of experience

  • Ergonomic controls for fast and efficient investigations
  • Excellent optics with high numerical aperture for brilliant images
  • Compact footprint to save space

Fast, efficient investigations

  • Best-in-class LED illumination
  • Easy to use aperture diaphragm to adjust your brightfield view
  • Bright images also with light-demanding techniques as phase contrast

Adjust It To Your Individual Needs

Designed to faciliate your daily routine

  • Removable condenser to increase the working distance (up to 150 mm)
  • Easy set-up of phase contrast with pre-centered slider
  • Contemporary ergonomic design

Extend your comfort with optional accessories

  • Mechanical stage with X-Y translation
  • More space on the stage with load-bearing side extensions
  • Interchangeable metallic inserts for slides, Petri dishes and flasks
  • Improved Optical Performance, Long Working Distance

Excellent contrast and resolution

  • Comprehensive range of objectives for extended versatility
  • Full chromatic correction and field planarity for 22mm field
  • Enhanced image quality, high contrast and brightness

Observe even the most complex samples

  • All models equipped with Infinity-Corrected IOS optics
  • Phase contrast objectives for examination of transparent samples
  • High-quality dry objectives for material science applications

Stay Connected With Your Specimen

Easy integration with digital world

  • Trinocular head with photo ports, activated with a touch of a lever
  • Complete range of adapters for all kinds of camera
  • Image fidelity thanks to pure white LED illumination

Software to simplify your workflow

  • Effective image capturing and live videos
  • Get fast, user-friendly, high resolution imaging
  • Annotate your images and measure distances

X-LED8 - Exclusive Lighting Source

Powerful and uniform illumination

  • Unmatched colour fidelity and brightness of your specimen
  • Special technology able to double the light intensity
  • Constant pure-white colour temperature, 6,300 K

Cut electricity bils by 90%

  • Money & energy saving
  • Low power consumption, only 8 W
  • LED long lifetime (50,000 hours = 20 years at 8 hours/day usage)

IM-3MET

TECHNICAL SPECIFICATIONS:

Illumination: Halogen bulb 12V/50W; intensity light control using a knob on the left side of the frame. Voltage: 110/240Vac, 50/60Hz, 1A ; Fuse: T3.15A 250V. Max power required: 62W

Observation Modes: Brightfield, polarised light.

Focusing: Coaxial coarse and fine focusing mechanism (graduated, 0.002mm) with upper stop, to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.

Stage: Fixed stage, dimensions 250x160 mm. Metal stage insert with hole for small dimension specimens.

OPTIONAL:

- Mechanical stage mountable on the right side of the stage, total dimension=250x230 mm, X-Y translation range 120x80 mm.

- Metallic interchangeable inserts for slides, Petri dishes, Terasaki, multi-Well plates, etc.

- Pair of side extensions to expand the surface of the stage.

Diaphragms. Field and aperture diaphragms (centrable).

Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.

Head: Trinocular observation head, inclined 45°. Diopter adjustment on left eyepiece. Interpupillary adjustment 50-75 mm.

Eyepieces: Wide field eyepieces EWF10X/22 with field number 22.

Objectives : Infinity corrected optical system IOS (Infinity Optical System). Plan-achromatic LWD objectives infinity corrected, made by following objectives: All objectives are treated with an anti-fungus treatment.

  • Plan-achromatic IOS 5X LWD, A.N. 0,15, W.D. 10,8 mm
  • Plan-achromatic IOS 10X LWD, A.N. 0,3, W.D. 10 mm
  • Plan-achromatic IOS 20x LWD, A.N. 0,45, W.D. 4 mm
  • Plan-achromatic IOS 50X LWD, A.N. 0,55, W.D. 7,9 mm

Dimensions

HEIGHT: 390 mm

WIDTH: 220 mm

WIDTH WITH OPTIONAL MECHANICAL STAGE: 300 mm

DEPTH: 680 mm

WEIGHT: 9 kg

Accessories: Polarizing filter, rotatable analizer filter, blue and green filter. Instruction manual and dust cover included.

Especificações

Ótica


Ocular
10
Tipo de objetiva
Acromático plano
Tipo de lâmpada
Halogênio
Condensador
LWD, N.A. 0,30, WD 72 mm / deslocador de fase 4X/10X e 20X/40X
Iluminação
Luz refletida
Aumento
500
Sistema ótico
infinito
Objetiva 1
Plan-achromatic IOS 5X LWD, A.N. 0,15, W.D. 10,8 mm
Objetiva 2
Plan-achromatic IOS 10X LWD, A.N. 0,3, W.D. 10 mm
Objetiva 3
Plan-achromatic IOS 20x LWD, A.N. 0,45, W.D. 4 mm
Objectiva 4
Plan-achromatic IOS 50X LWD, A.N. 0,55, W.D. 7,9 mm

Capacidade


campo iluminado
sim
Suprimento de energia
EU
Contraste
sem

Mecânica


Tipo de construção
Triocular
Focagem
Movimento bruto e fino (Graduação de 0,002 mm, com função de travamento como proteção do objeto)
Postura de visão (°)
Visão diagonal a 30°
Estante de amostra
Estante de amostra

Especialidades


Mesa para centrar
-
Ocular grande angular
sim

Geral


Cor
cinzento/preto
Altura (mm)
495
Comprimento (mm)
730
Largura (mm)
230
Peso (g)
9000
Série
IM-3

área de especialização


Medicina
-
Industria
sim

Áreas de uso


Universidade
-
Metalurgia
sim
