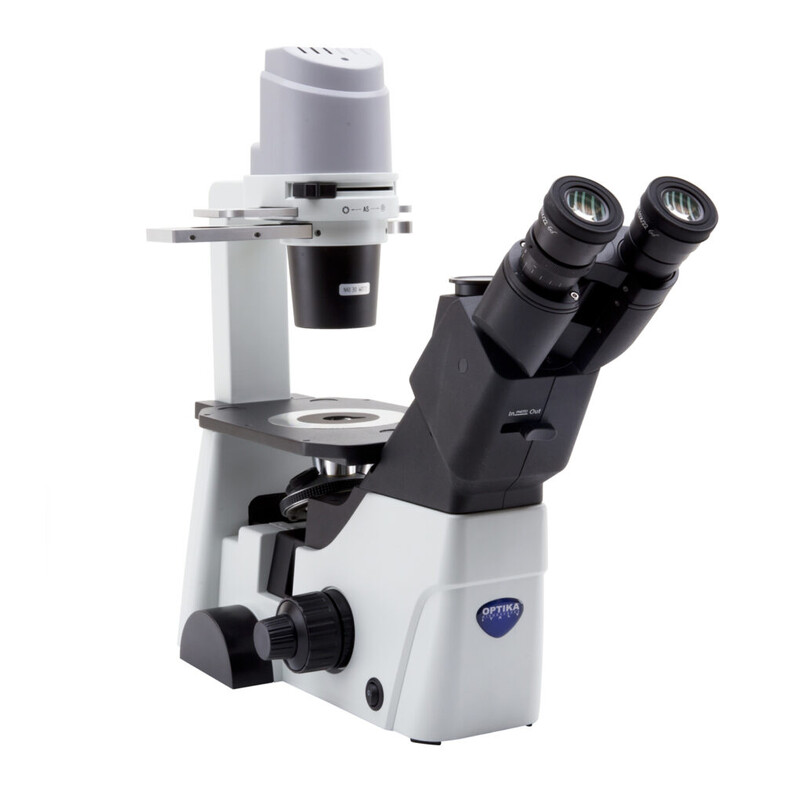

OPTIKA IM-300
Inverted microscopes are useful for observing living cells or organisms at the bottom of a large
container (e.g., a tissue culture flask) under more natural conditions than on a glass slide, as it
occurs with a conventional microscope.
IM-300 Series is engineered and designed to be your
ideal solution for fast and reliable routine inspections, with the exclusive, state-of-the-art X-LED8
illumination system. A particularly simple and ingenious optical design allows stable alignments
and smooth and accurate movements. OPTIKA provides different configurations, including the
innovative LED fluorescence technology for a new, enhanced experience.
IM-300 modell
Observation mode: Brightfield, phase contrast.
Head: Trinocular (2-position 100/0, 50/50), 45° inclined.
Interpupillary distance: Adjustable between 50 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/22 mm, high eye-point and with rubber cups.

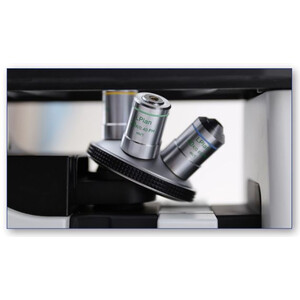

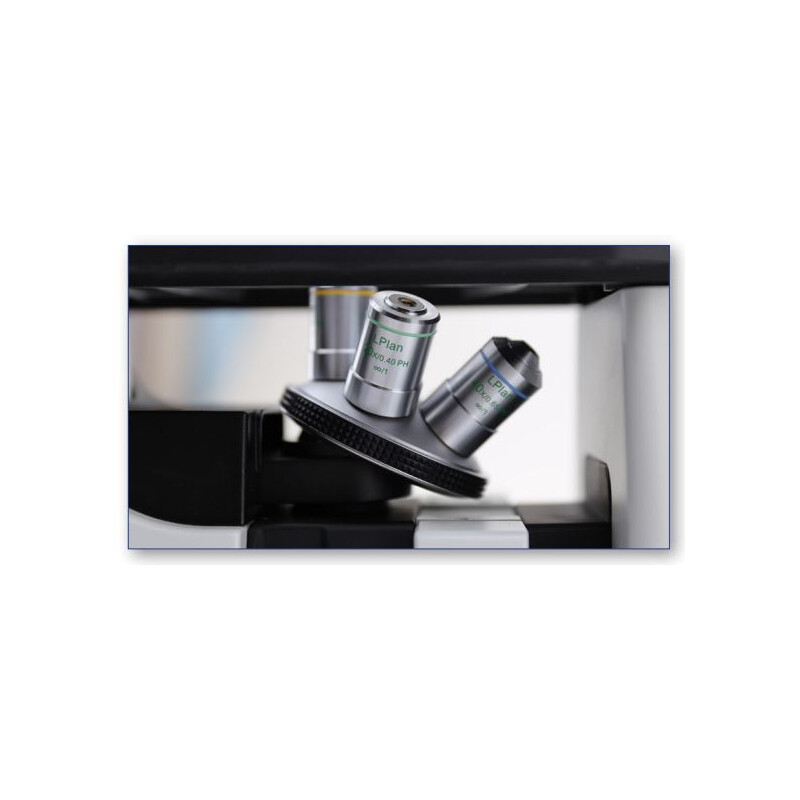

Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
Objectives:
IOS LWD W-PLAN PH 10x/0.25
IOS LWD W-PLAN PH 20x/0.40
IOS LWD W-PLAN PH 40x/0.65
All with anti-fungus treatment.
Specimen stage: Fixed stage, 250×160 mm, with glass and metal stage inserts.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: LWD pre-centered condenser, N.A. 0.30, W.D. 72 mm. With 4x/10x, 20x/40x phase contrast slider and brightfield.
Transmitted illumination:
X-LED8 with white 8 W LED (6,300K) with brightness control. With aperture diaphragm. Multi-plug 100-240Vac/6Vdc external power supply
