Astrofotografia > Câmeras > Câmaras para Astronomia > Apogee > Alta > Apogee Câmera Alta F16M grade S
Nr. do produto: 53217

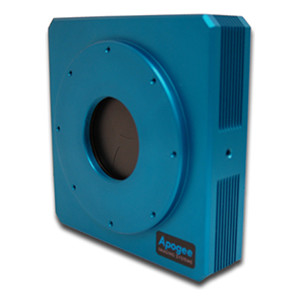

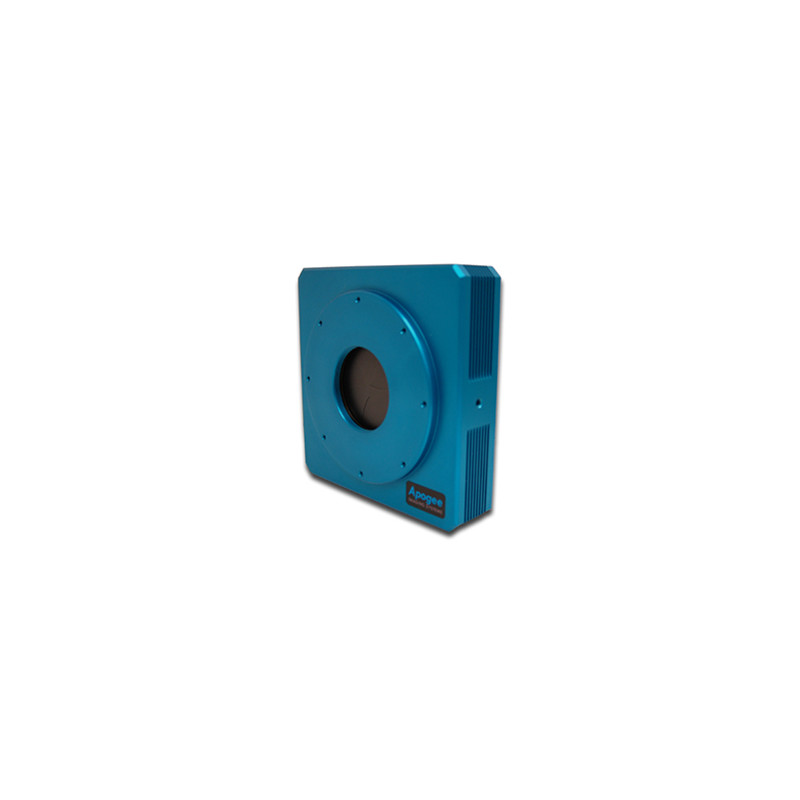

Câmera Alta F16M grade S

$ 15.800,00 incl. VAT, mais custo de remessa
muito caro?
longo prazo
Produto não está mais disponivel + Tempo de Transportes

Descrição do produto

Infelizmente, a descrição deste produto ainda não está em Portuguê portanto, você encontrará uma descrição em Inglês do produto aqui.

The Apogee Alta family has been a mainstream of high end imaging for many years, offering a wide range of full frame and interline CCDs. Cooling performance down to 45° C below ambient ensures optimal signal to noise for long exposure applications. A USB 2.0 interface offers the convenience of simple, robust connection to PC.

Apogee Alta cameras are available with a wide variety of sensors, including: Back-illuminated sensors with very high quantum efficiency, some with sensitivity in the deep UV; Interline transfer sensors with fast electronic shuttering and inherent anti-blooming; front-illuminated CCDs with high sensitivity in the near-IR without etaloning and a range of resolution options up to 16.8 Megapixel.

Features and Benefits:

  • High resolution sensors: Sensors up to 16.8 Megapixel, offering large field of view at high resolution
  • Programmable TE cooling to 50 °C below ambient: Ideal for astronomy images, enabling long exposure acquisitions with optimized signal to noise ratio
  • High Dynamic Range: Large pixel sensor variants offer extended intrascene quantification of weak and bright objects
  • 16-bit digitization: High photometric accuracy
  • In built shutter: Shutter during readout and take dark reference frames - 25mm, 43mm or 63mm.
  • USB 2.0: Direct ‘Plug and Play’ connectivity
  • Programmable I/O port: Synchronization with intricate experimental set-ups
  • Remote triggering: LVTTL input allows exposure to start within 25 microseconds of rising edge of trigger
  • Focusing mode: Faster readout option, ideal for focus optimization
  • Precision locking filter wheels (optional): Choose from a range of Apogee family filter wheels, up to 10 position
  • Andor OEM optimization: Compact and robust, Andor integration support, Andor quality enhancement, Andor post-sale support. Now also supported by 'Andor SDK3'

The Alta F16M features the largest sensor in the Alta range - a very large format 16.8 megapixel full frame sensor with microlenses and transparent gate electrodes to maximize sensitivity, as well as anti-blooming structure. Cooling down to 45° Celsius below ambient results in a low darkcurrent contribution.
These features make the Alta F16M an ideal solution for applications requiring both a large field of view and optimal signal to noise ratio, such as DeepSky-astrophotography, sky surveys and radiology.

Special features:

  • Temperatur stability: +/- 0.1°C
  • Maximum Dynamic Range: 72.6 dB (4299:1)
  • Linearity: >99%
  • Camera Window: UV-grade fused silica
  • Image Sequencing: 1 to 65535 image sequences under software control
  • Shutter: 63mm
  • Blemish Specification: Grade S as per sensor manufacturer definition

Especificações

Capacidade


Anti florescimento
sim
Refrigeração
sim
Câmara a cores
não
Interfaces
USB 2.0
Tipo de sensor
Chip CCD (Kodak KAF-16803)
Tamanho do chip (mm)
36,8 x 36,8
Tamanho de pixel
9
Foto de resolução
4096 x 4096
Full Well Capacity
95.000
Profundidade de bit (Bit)
16
Diferença máxima de arrefecimento abaixo da temperatura ambiênte
-45
Ruído do leitor
22,1
Corrente escura
0,02
Binning
1 x 1 to 8x 4096
Microlente
sim
Megapixel
16,8
Distância focal da flange (mm)
25,6
Tempo de exposição máxima (min)
95
Chip - Diagonal (mm)
52

Geral


Medidas externas CxLxA (cm)
17,8 x 17,8 x 6,5
Peso (g)
1900
Série
Alta

Áreas de uso


AllSky, Meteore
não
Auto guia
não
Lua & planetas
sim
Nebulosas & galáxias
sim

Acessórios recomendados

Acessórios para telescópio (1)
Filtros de Bloqueio

Omegon FILTRO de BLOQUEIO UV e IV 1,25''

$ 79,00*
Filtro (1)
Filtro

Omegon FILTRO DEEP SKY 1,25''

$ 89,00*
Espectrografia & Fotometria (1)
Espectroscópio

Paton Hawksley Espectroscópio Star Analyser 100

$ 203,00*

*Todos os preços incluem imposto e custos de remessa.

Apogee Câmera Alta F16M grade S

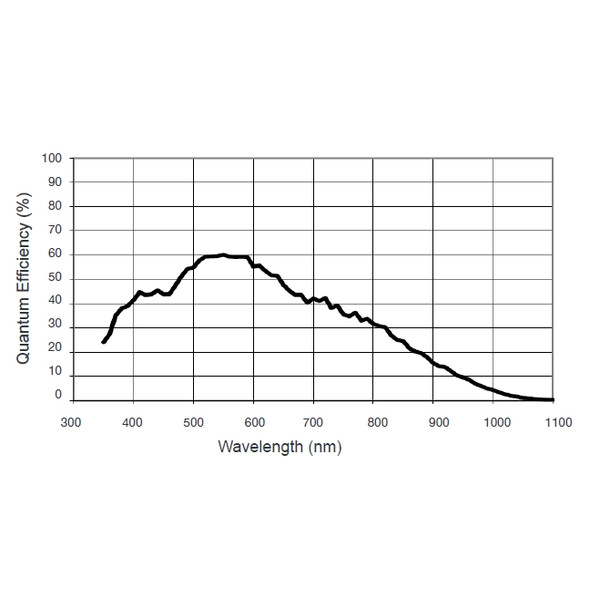

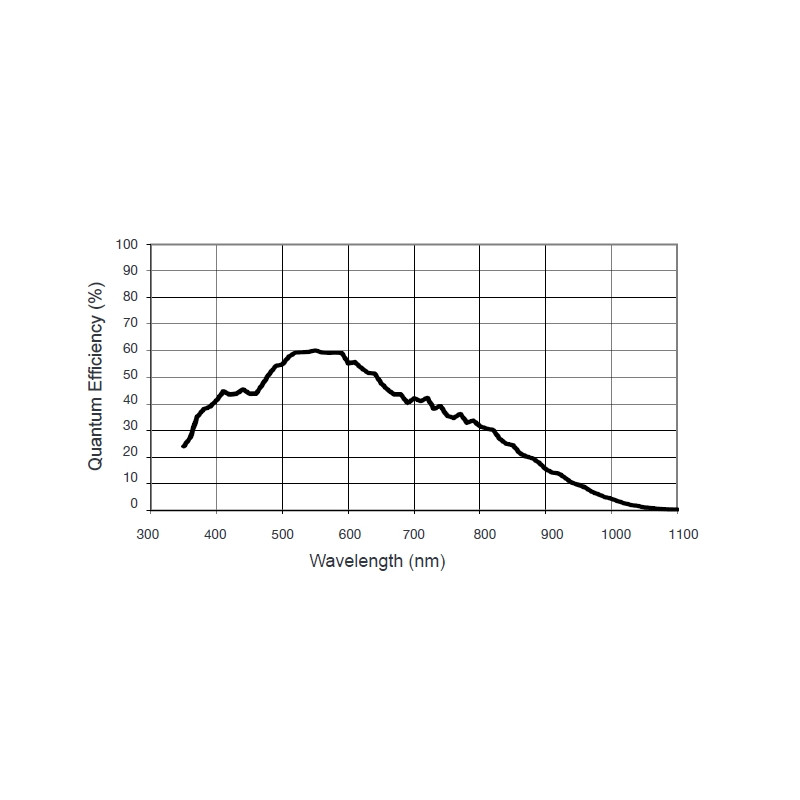

Eficiência quântica
