The current for the two stepper motors is sine wave shaped. This means that the motors run very silent, with no vibrations and with a very steady torque. This is called microstep mode.
5 programmable slewing speeds up to 3200x, for example 1/4x, 1x, 5x, 20x, 60x or: 0.3x, 1x, 3x, 10x, 500x. The maximum available speed depends on your motors and gears.
The tracking speed can be selected for:
- Stars, Moon, Sun
- Comets (both axes are programmable, King Rate is possible too)
- Earth (no tracking at all, e.g. for adjusting the optics)
Automatic Slewing to Objects (GoTo)
- All 109 Messier objects
- A practical selection (>3500) NGC and IC objects
- 168 bright stars (all stars brighter than 3rd mag)
- Sun and planets
- RA and DE
- If you didn´t find yout object right away: Automatic searching on a spiral-shaped track around the center of the field.

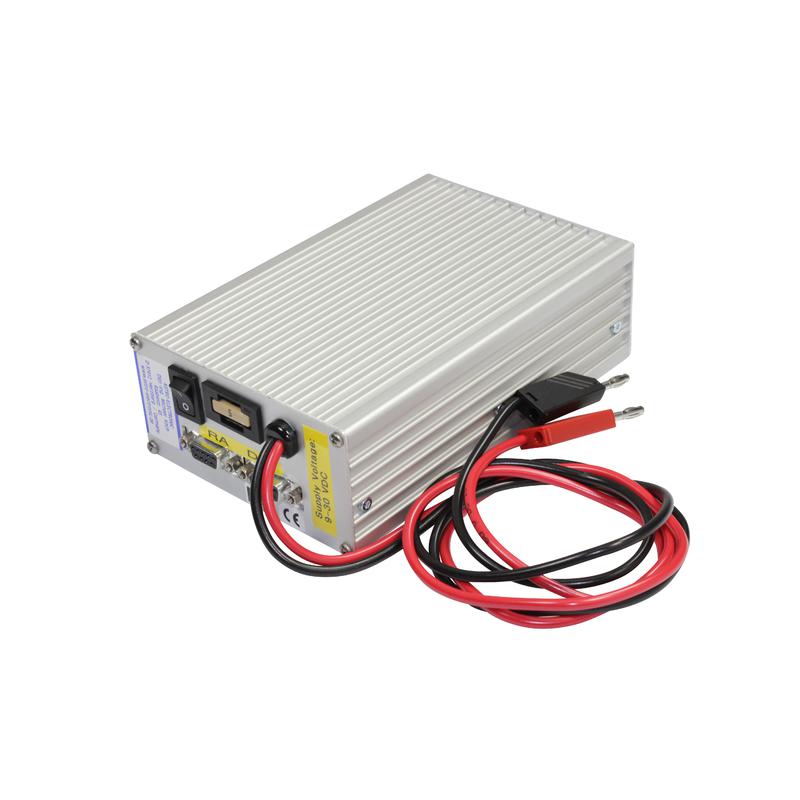

The second version accepts a supply voltage between 9 and 30 Volts. At 30 Volts you have approx. twice the maximum speed compared with 12 Volts.
This works with all stepper motors because the motor current is regulated by the FS2
